Round Vibrating Screen
- Long life
- Difficult to plugging holes
- Noise
1. The Introduction to Round Vibrating Screen
Circular vibrating screen is a kind of round-shaped vibrating, number of layers, efficient new vibrating screen. Circular vibrating screen adopts a cylinder-type eccentric shaft vibration exciter and partial block to adjust the amplitude, material sieve drip line long, many screening specifications, reliable structure, strong exciting force, high screening efficiency, low noise, durable easy maintenance, the use of safety, and the vibrating screens are widely used in mining, building materials, transportation, energy, chemical industry product classification.
Circular vibrating screen material shaped movement round the net surface, which is used in the industries of coal, metallurgy, mining and other sectors for product grading, whose capacity is higher, the screen efficiency is also higher, which also has some merits such as rational parameter, strong structure, reliable operation, low noise and easy maintenance.
2. Working Principles
.jpg)

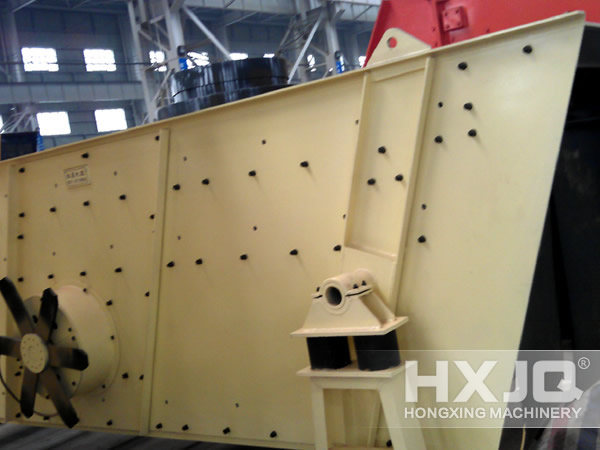

.jpg)

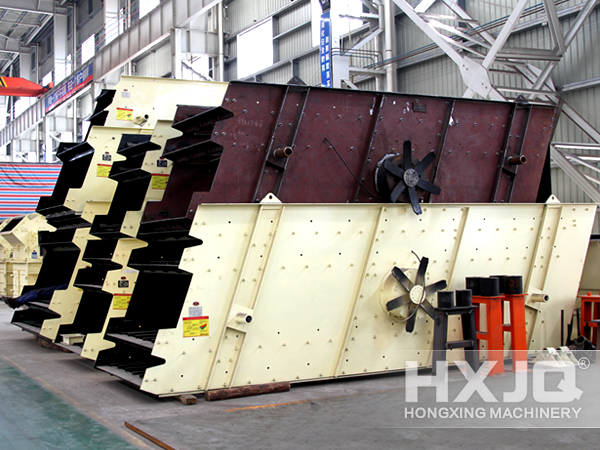

.jpg)
Circular vibrating screen is mainly made of screen box, screen, vibrators and vibration reduction spring. The vibrator is mounted on the side panel of the screen box is rotated by the motor through the V-belt to produce centrifugal force, forcing the vibration of screen box. If there is some special had happening in the operation, YA and 2YA of type for textile screen surface, YAH for punching the screen surface, all kinds of screen surface can meet the requirement of customers all the time.
3. Technological Parameter:
| Model | Sieve layer | Sieve area (m2) | Mesh size (mm) | Max. feeding size (mm) | Processing capacity (m3/h) | Vibrating Frequency (r/min) | Double amplitude (mm) | Motor power (kw) | Sieve obliquity (°) | Sieve specification (mm) | Dimensions (L×W×H) (mm) |
| 2YK1230 | 2 | 7.2 | 4-50 | 200 | 12-78 | 970 | 6 | 6P 7.5 | 20 | 1200×3000 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 200 | 13-80 | 970 | 6 | 6P 7.5 | 20 | 1200×3000 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 200 | 15-86 | 970 | 6 | 6P 7.5 | 20 | 1200×3700 | 4050×1860×870 |
| 3YK1237 | 3 | 13.32 | 4-50 | 200 | 16-90 | 970 | 6 | 6P 7.5 | 20 | 1200×3700 | 4270×1860×1210 |
| 2YK1548 | 2 | 14.4 | 5-50 | 200 | 22.5-162 | 970 | 6 | 6P 11 | 20 | 1500×4800 | 5420×2210×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 200 | 22.5-162 | 970 | 6 | 6P 15 | 20 | 1500×4800 | 5660×2210×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 200 | 22.5-162 | 970 | 6 | 6P 18.5 | 20 | 1500×4800 | 6230×2210×2060 |
| 2YK1854 | 2 | 19.44 | 5-80 | 200 | 32-312 | 970 | 6 | 6P 22 | 20 | 1800×5400 | 5960×2550×1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 200 | 32-312 | 970 | 6 | 6P 22 | 20 | 1800×5400 | 6260×2550×1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 200 | 32-336 | 970 | 6 | 6P 22 | 20 | 1800×5400 | 6830×2550×2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 200 | 50-475 | 970 | 6 | 6P 30 | 20 | 2100×6000 | 6720×2840×1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 200 | 50-475 | 970 | 6 | 6P 30 | 20 | 2100×6000 | 7030×2840×1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 200 | 50-497 | 970 | 6 | 6P 37 | 20 | 2100×6000 | 7300×2840×2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 200 | 65-550 | 970 | 6 | 6P 30 | 20 | 2400×6000 | 7020×3140×1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 200 | 70-620 | 970 | 6 | 6P 37 | 20 | 2400×6000 | 7300×3140×1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 200 | 80-680 | 970 | 6 | 6P 45 | 20 | 2400×6000 | 7600×3140×2380 |
| 2YK2873 | 2 |
39.2 |
5-100 | 200 | 70-680 | 750 | 6 | 6P 37 | 20 | 2800×6440 | 7600×4320×1620 |
| 3YK2873 | 3 | 58.8 | 5-100 | 200 | 80-720 | 750 | 6 | 6P 45 | 20 | 2800×6440 | 7800×4320×2120 |
| 4YK2873 | 4 | 58.8 | 5-100 | 200 | 90-950 | 750 | 6 | 6P 55 | 20 | 2800×6440 | 7800×4320×2120 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
